Cooling Tower Fans – Improving Cooling Efficiency

Features
Structure & Components
Technical Data
Applications

Features

High transmission efficiency. Aluminum alloy wing blades, light weight, low noise.
Good balance. The fan blades have high precision, and weight matching and balance tests have been conducted before leaving the factory. The fan running balance has been modified.
Corrosion resistance. The surface oxidation treatment process of the fan improves corrosion resistance.
Easy installation. Aesthetically pleasing and simple, with adjustable blade angles.

Structure & Components

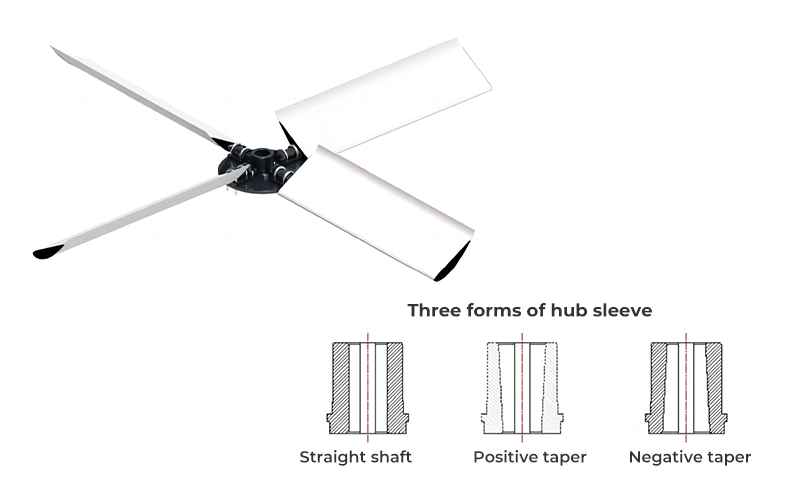

Cooling tower fan and three forms of hub sleeve

Main components of RD-JF fan:

Blades. The blades adopts a wing design and is made of aluminum alloy.
Hub. The hub is fixed with a U clamp, allowing for any angle adjustment and ensuring running balance through dynamic balance testing.
Hub sleeve. The hub sleeve comes in 3 forms: straight shaft, positive taper, and negative taper.
Radials.
U clamp.

Technical Data

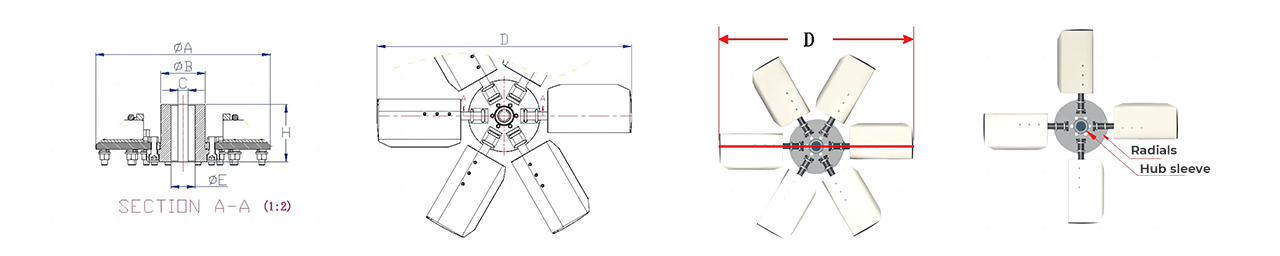

Dimensions of cooling tower fan from 4 different angles

Table 1: Installation Dimensions of RD-JF Fan Series
Size Sequence Fan Diameter (mm)	[1200,2400)	[2400,3000]	(3000,6000]
A	320	350	500
B	95	95	120
C	10–18		16–25
H	120	120	120
E	38	50	60–90

Table 2: RD-JF Fan Series Matching Gearbox Selection Reference Table
Fan Diameter (mm)	Number of Blades	Blade Type	Speed (r/min)	Air Volume (m³/h)	Total Pressure (Pa)	Matching Gearbox	Motor Power (kw)	Noise Test Value at 2x Fan Diameter (dB)
1500	4	A	370	59700	120	TYQ132-4-370	4	68
1500	4	B	330	57300	130	TYQ132-4-330	4	65
1500	6	B	250	61200	132.2	TYQ132-4-250	4	60
1800	4	A	370	81000	139	TYQ132-4-370	5.5	70
1800	4	A	330	85800	125	TYQ132-5.5-330	5.5	66
1800	6	A	250	81000	139	TYQ132-5.5-250	5.5	60
2000	4	A	370	92400	130	TYQ132-5.5-370	7.5	70
2000	4	A	330	102000	126	TYQ132-4-330	7.5	66
2000	6	B	250	101400	120	TYQ160-7.5-250	7.5	61
2100	4	A	370	101400	150.4	TYQ132-7.5-370	7.5	71
2100	4	A	350	91200	120.1	TYQ132-5.5-350	5.5	66
2100	6	A	250	91200	120.1	TYQ132-5.5-250	5.5	61
2400	6	B	330	170000	210	TYQ160-11-210	11	70
3000	4	A	320	260000	171	TYQ160-18.5-320	18.5	73
3000	4	A	250	221760	179	TYQ160-15-250	15	70
3000	6	A	210	202248	147	TYQ160-11-210	11	65
3500	4	B	320	280000	130	TYQ160-22-320	22	75
3500	6	B	210	260000	130	TYQ160-15-210	15	65
3600	4	B	320	320000	170	TYQ160-22-320	22	76
3600	6	B	210	350000	210	TDQ160-22-210	22	65
4267	4	B	250	425000	130	TDQ160-22-250	22	73
4267	6	B	210	450000	215	TDQ225-37-210	37	66
4500	4	B	210	550000	171	TDQ225-37-210	37	75
4500	6	B	165	560000	210	TDQ225-37-165	37	73
5000	6	B	165	550000	120	TDQ225-30-165	30	75
5000	4	B	160	500000	120	TDQ225-22-165	22	68
6000	4	B	165	600000	120	TDQ225-30-165	30	75
6000	6	B	165	650000	120	TDQ225-307-165	37	76
Blade types: Type A, width 260 mm; Type B, width 350 mm; Type C, width 400 mm.

Applications

Fans with a diameter of 1200–6000 mm are suitable for small industrial cooling towers, civil cooling towers, and air coolers.
