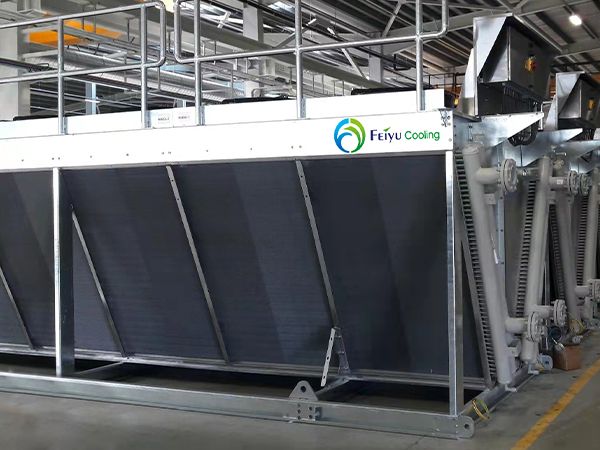

V-Shaped Dry Type Air Cooler Runs 100% Dry

Features
Working Principle
Structure & Components
Application
Gallery

Features

Dry type air cooled heat exchanger runs 100% dry.
Suitable for cooling projects with server water shortage.
Save high water bills and waste water treatment costs.
Low power consumption and power saving.
Reduce electrolytic corrosion.
Finned tubes serve as the heat exchanger and create a large heat dissipation area.
Integrated transportation, easy installation.
Reduced maintenance.
Low tower height, compact structure and small floor area.

How Does It Work?

V-shaped dry type air cooler schematic diagram

Hot process fluid enters the inlet of the finned tubes. At the same time, fan system is turned on. The cold air drawn into the unit flows across the finned tubes and conducts heat transfer with the process fluid in the finned tubes. The hot process fluid becomes cool and flow out of the outlet of the finned tubes. The cold air becomes hot and humid air and is dispatched to the atmosphere outside the unit.

Structure & Components

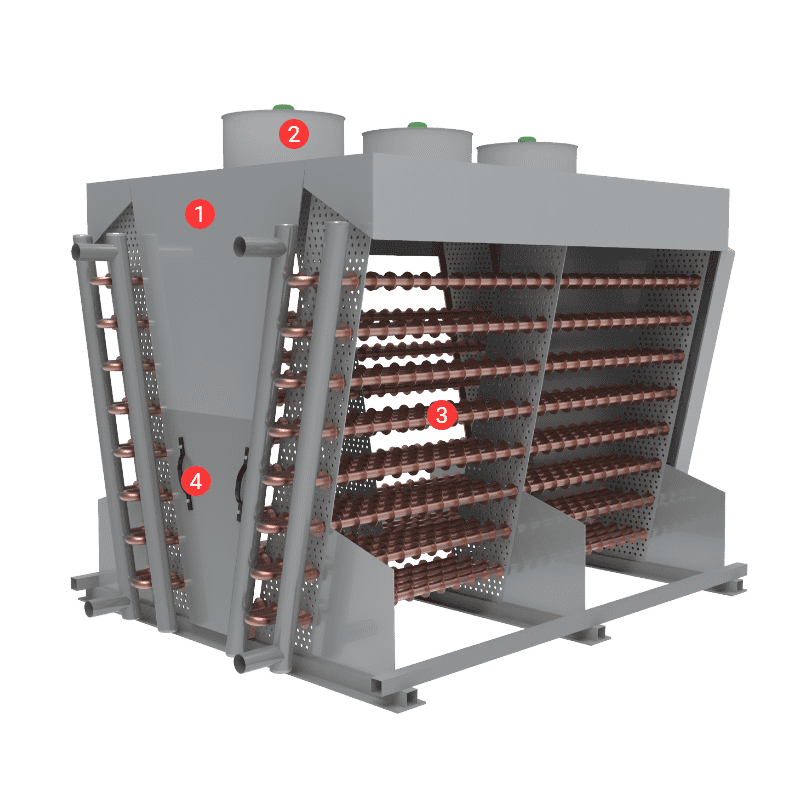

V-shaped dry type air cooler structure diagram

1
Stainless steel 304 or DX51D+AZ120 aluminized zinc plate tower body
2
Induced-shaft axial fan
3

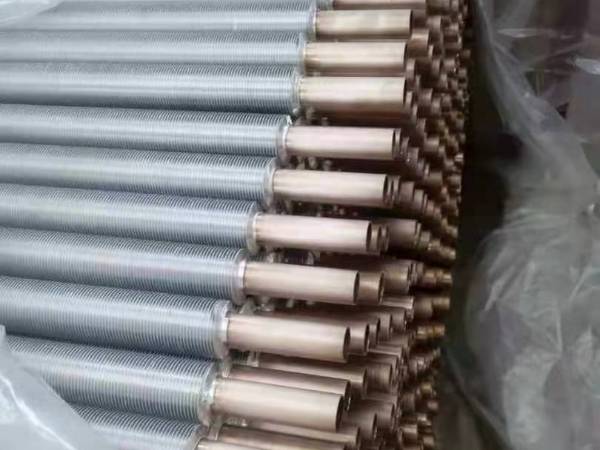

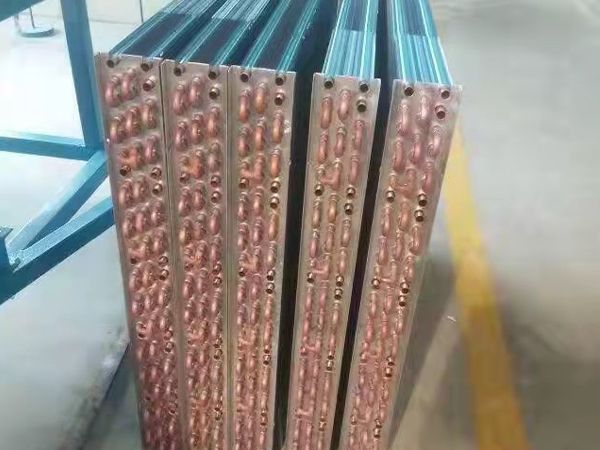

Finned tubes, fins can be constructed of aluminum, stainless steel or copper; tubes can be made of copper, stainless steel or carbon steel.
4
Easy-to-remove access door

Application

V-shaped dry type air coolers are widely used in the following industries:

Steel - electrical arc furnace/induction furnace cooling
Refinery & petrochemicals - reactor column cooling
Rubber - roller cooling
Polyfilm - chill roll cooling
Independent power stations - cooling of engine jacket water, lube oil & inter-stage cooler
Plastic - injection molding machine cooling
Textiles - process vapour condensation
Refrigeration / air conditioning - condensers for air cooled chillers
Power industry - turbine lube oil cooler / turbine intercooler

Gallery

Find the perfect solution for you!

If you are interested in fly cooling tower products, or confused about how to choose the right cooling tower product for your application, or have any other doubt, please fill out the form below to get your answers or cooling tower quotation.

V-Shaped Dry Type Air Cooler – Saving Water & Electricity Resources
